Thule Omnistor 4900 Spare Parts

Price range: £16.30 through £705.60

Instructions

  1. Click on the diagram to enlarge it.
  2. Identify the part you need and note its number.
  3. Select that number from the Part Number drop-down below.
  4. Add to basket.

Genuine Thule spare parts. Can’t find your part or unsure? Send us a photo.

🚚 Free UK delivery over £300 · 2–4 working days
🛠️ Thule Installation Specialists — advice & fitting from our Poole workshop
🙋🏻‍♂️ Questions? Call 01202 620427 — real people, Mon–Fri 9–5
🔐 Secure checkout — Visa, Mastercard, PayPal, Apple Pay & Google Pay

Thule Logo in black
SKU: N/A Category: Tag: Brand:
Add £300.00 more to get free shipping!

Thule Omnistor 4900 Spare Parts

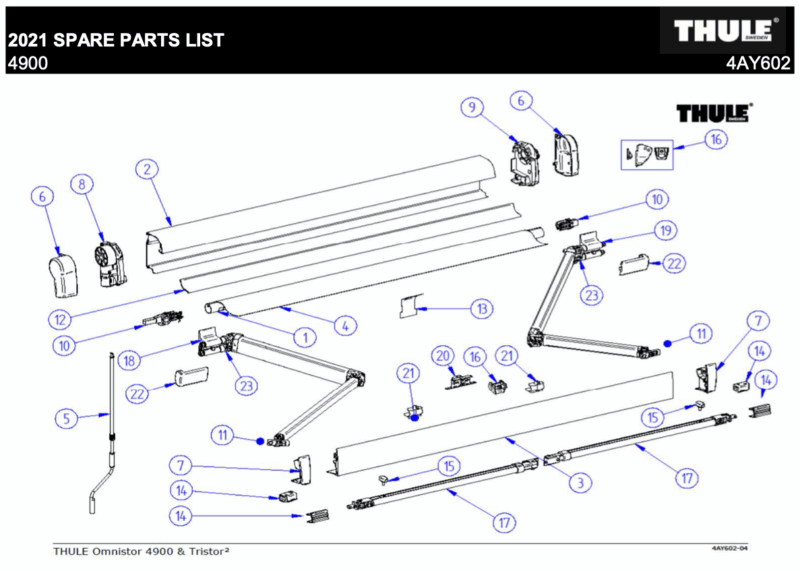

Genuine Thule Omnistor 4900 spare parts from Rose Awnings, the UK’s leading Thule RV spare parts stockist. The exploded parts diagram above shows every replaceable component of the Thule Omnistor 4900 awning, each with its diagram number.

Find the part you need on the diagram, match its number to the Part Number drop-down and add it to your basket. Every option shows the genuine Thule article number and description so you can be sure you are ordering the right part.

The Thule Omnistor 4900 is no longer in production, but Thule still supplies the spare parts listed here, so an older awning can usually be repaired rather than replaced.

Not sure which part has failed? Send us a photo of your awning or the damaged component via our contact form and we will identify it for you.

Parts available for the Thule Omnistor 4900

  • Roller Tube D=30X0.8MM / 4200-2.60m
  • Roller Tube D=30X0.8MM / 4200-3.00m
  • Roller Tube D=30X0.8MM / 4200-3.50m
  • Roller Tube D=30X0.8MM / 4200-4.00m
  • Roller Tube D=30X0.8MM / 4200-4.50m
  • Main Housing 4900 2.60m White
  • Main Housing 4900 3.00m White
  • Main Housing 4900 3.50m White
  • Main Housing 4900 4.00m White
  • Main Housing 4900 4.50m White
  • Main Housing 4900 2.60m Anodised
  • Main Housing 4900 3.00m Anodised
  • Main Housing 4900 3.50m Anodised
  • Main Housing 4900 4.00m Anodised
  • Main Housing 4900 4.50m Anodised
  • Main Housing 4900 2.60m Anthracite
  • Main Housing 4900 3.00m Anthracite
  • Lead Rail 4200/4900 2.60m White
  • Lead Rail 4200/4900 3.00m White
  • Lead Rail 4200/4900 3.50m White
  • Lead Rail 4200/4900 4.00m White
  • Lead Rail 4200/4900 4.50m White
  • Lead Rail 4200/4900 2.60m Anodised
  • Lead Rail 4200/4900 3.00m Anodised
  • Lead Rail 4200/4900 3.50m Anodised
  • Lead Rail 4200/4900 4.00m Anodised
  • Lead Rail 4200/4900 4.50m Anodised
  • Lead Rail 4200/4900 2.60m Anthracite
  • Lead Rail 4200/4900 3.00m Anthracite
  • Hand Crank Small G2
  • LH+RH End Cap Main Housing 4900
  • LH+RH End Cap Main Housing 4900 Anodised
  • LH+RH End Cap Main Housing 4900 Anthracite
  • LH+RH End Cap Lead Rail 4900
  • LH+RH End Cap Lead Rail 4900 Anodised
  • LH+RH End Cap Lead Rail 4900 Anthracite
  • LH Endplate Assembly 4900
  • LH Endplate Assembly 4900 Anodised
  • LH Endplate Assembly 4900 Anthracite
  • RH Endplate Assembly 4900
  • RH Endplate Assembly 4900 Anodised
  • RH Endplate Assembly 4900 Anthracite
  • LH+RH End Cap Roller Tube 4900
  • LH+RH Connector Lead Rail 4900
  • LH+RH Stop Spring Arm 4900
  • Support Roller Tube 4900 2.60m
  • Support Roller Tube 4900 3.00m
  • Support Roller Tube 4900 3.50m
  • Support Roller Tube 4900 4.00m
  • Support Roller Tube 4900 4.50m
  • Spring Support Roller Tube 4900
  • Connection Support Arm 4900
  • Knob Support Arm Oval (2 pcs)
  • Connection pcs Tension Rafter 4900
  • Support Leg Oval 2.60m
  • Support Leg Oval 3.00m
  • Support Leg Oval 3.50m-4.50m
  • LH Spring Arm 4900 Anodised 2.60m
  • LH Spring Arm 4900 Anodised 3.0/3.5m
  • LH Spring Arm 4900 Anodised 4.0/4.5m
  • RH Spring Arm 4900 Anodised 2.60m
  • RH Spring Arm 4900 Anodised 3.0/3.5m
  • RH Spring Arm 4900 Anodised 4.0/4.5m
  • Central Clamp Support Arm Oval
  • Clip Support Arm Oval
  • LH+RH Cover Spring Arm Bracket
  • Rotation Plate 4900 / 6200

2 Year Thule Warranty

All Thule RV products carry a 2 year guarantee. Before ordering spare parts, it is worth checking whether the broken part is covered by the Thule guarantee. Accidental damage is not covered.

Fitting & Repair Service

Not confident doing the repair yourself? Our workshop in Poole, Dorset can fit Thule Omnistor 4900 spare parts for you, usually within an hour or two. Use the contact form to book in.

Secure Payments

All major cards accepted.

Free Shipping

On orders over £300

Gifts & Sales

Exclusive offers for subscribers

Technical Support

For all our customers

Important updates waiting for you!

Subscribe and grab 5% OFF!

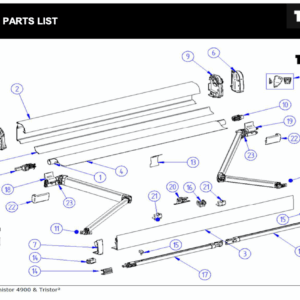

Thule Omnistor 4900 exploded parts diagram
